尼龙扎带

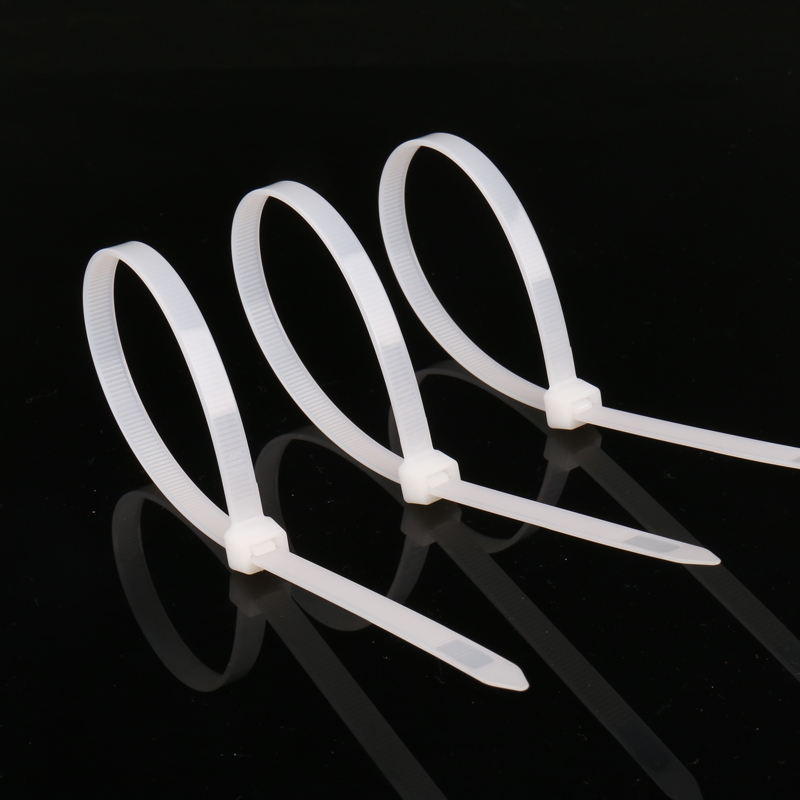

Nylon Cable Ties

产品特性Product Features

材质：采用UL认可之尼龙66为原料，防火等级94V-2，耐酸、耐腐蚀，绝缘性良好，不易老化，承受力强。

颜色：标准颜色为白色，另有抗紫外线之黑色，其他颜色均可定做。

温度：-40℃-+85℃

Material:Nylon Pa66,94V-2

Operating temperature:-40℃ to 85℃

Specification:UL approved material. Heat resistant,colour are available

规格参数Product Parameters

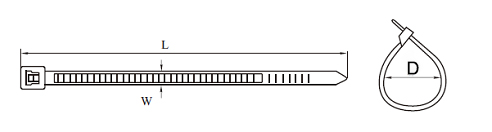

规格型号 Part number	长度Length		宽度width	捆扎范围 Bundle diameter	承受力 Tensile strength
JHONG.NO	inch	mm	mm	mm	LBS	KGS
JH-3X100	4	100	2.5	2-22	18	8
JH-3X150	6	150	2.5	2-35	18	8
JH-3X200	8	200	2.5	2-50	18	8
JH-4X150	6	150	3.6	3-35	40	18
JH-4X200	8	200	3.6	3-50	40	18
JH-4X250	10	250	3.6	3-65	40	18
JH-4X300	12	300	3.6	3-80	40	18
JH-4X370	14.6	370	3.6	3-105	40	18
JH-5X150	6	150	4.6	3-35	50	22
JH-5X200	8	200	4.6	3-50	50	22
JH-5X250	10	250	4.6	3-65	50	22
JH-5X300	12	300	4.6	3-80	50	22
JH-5X350	14	350	4.8	3-90	50	22
JH-5X370	14.6	370	4.8	3-98	50	22
JH-5X400	16	400	4.8	3-105	50	22
JH-5X450	18	450	4.8	3-130	50	22
JH-5X500	19.7	500	4.8	3-150	50	22
JH-8X200	8	200	7.6	3-50	120	55
JH-8X250	10	250	7.6	4-65	120	55
JH-8X300	12	300	7.6	4-80	120	55
JH-8X350	14	350	7.6	4-90	120	55
JH-8X370	14.6	370	7.6	4-98	120	55
JH-8X400	16	400	7.6	4-105	120	55
JH-8X450	18	450	7.6	4-120	120	55
JH-8X500	20	500	7.6	4-150	120	55
JH-8X550	21.6	550	7.6	4-165	120	55
JH-9X400	16	400	9	8-105	175	79
JH-9X450	18	450	9	8-120	175	79
JH-9X500	20	500	9	8-150	175	79
JH-9X550	21.6	550	9	8-160	175	79
JH-9X600	23.6	600	9	8-170	175	79
JH-9X650	25.6	650	9	8-185	175	79
JH-9X700	27.5	700	9	8-195	175	79
JH-9X760	30	760	9	8-210	175	79
JH-9X800	31.5	800	9	8-220	175	79
JH-9X900	35.5	900	9	10-265	175	79
JH-9X1000	40	1000	9	10-300	175	79
JH-9X1200	47.2	1200	9	10-370	175	79
JH-12X600	23.5	600	12	14-160	250	114
JH-12X650	25.6	650	12	14-185	250	114
JH-12X900	35.5	900	12	14-255	250	114
