非标自锁尼龙扎带
尼龙扎带

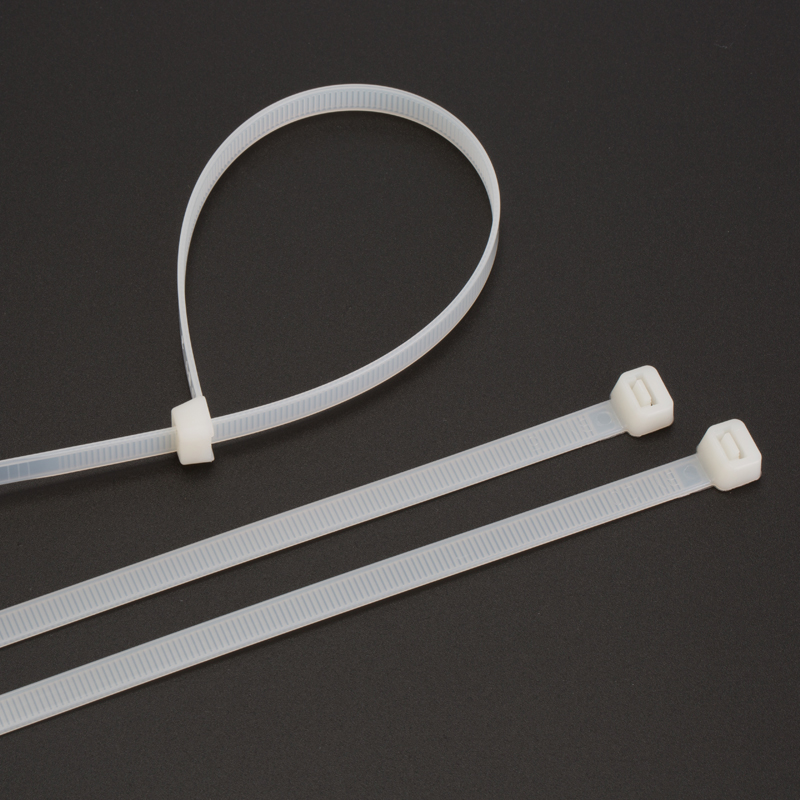

Nylon Cable Ties
产品特性Product Features
材质：采用UL认可之尼龙66为原 料，防火等级94V-2，耐酸、耐腐蚀，绝缘性良好，不易老化，承受力强。
颜色：标准颜色为白色，另有抗紫外 线之黑色，其他颜色可定做。
温度：零下30℃-+85℃
Material:Pa66,94V-2
Operating temperature:-30℃ to 85℃
Specification:UL approved material. Heat resistant,colour are available
规格参数如下：
|
规格型号 Part number |
宽度(mm) Width |
长度(mm) Length |
捆扎直径(mm) Max.Bundle Dia. D |
拉力(KGS) Min.loop Tensile Strength |
| JH-1.9X100 | 1.9 | 100 | 2-22 | 6 |
| JH-1.9X150 | 1.9 | 150 | 2-35 | 6 |
| JH-2.2X200 | 2.2 | 200 | 2-50 | 7 |
| JH-2.7X150 | 2.7 | 150 | 3-35 | 12 |
| JH-2.7X200 | 2.7 | 200 | 3-50 | 12 |
| JH-2.7X250 | 2.7 | 250 | 3-65 | 12 |
| JH-2.7X300 | 2.7 | 300 | 3-80 | 12 |
| JH-3.9X200 | 3.9 | 200 | 3-50 | 18 |
| JH-3.9X250 | 3.9 | 250 | 3-65 | 18 |
| JH-3.9X300 | 3.9 | 300 | 3-80 | 18 |
| JH-3.9X400 | 3.9 | 400 | 3-105 | 18 |
| JH-3.9X500 | 3.9 | 500 | 3-150 | 18 |
| JH-4.2X250 | 4.2 | 250 | 3-65 | 22 |
|
JH-4.2X300 |
4.2 | 300 | 3-80 | 22 |
|
JH-4.2X350 |
4.2 | 350 | 3-90 | 22 |
| JH-4.2X400 | 4.2 | 400 | 3-105 | 22 |
| JH-5.2X200 | 5.2 | 200 | 3-50 | 22 |
| JH-5.2X250 | 5.2 | 250 | 3-65 | 28 |
| JH-5.2X300 | 5.2 | 300 | 3-80 | 28 |
|
JH-5.2X350 |
5.2 | 350 | 3-90 | 28 |
|
JH-5.2X400 |
5.2 | 400 | 3-105 | 28 |
| JH-5.2X450 | 5.2 | 450 | 3-120 | 28 |
|
JH-5.2X500 |
5.2 | 500 | 3-150 | 28 |
|
JH-5.8X150 |
5.8 | 150 | 4-35 | 28 |
|
JH-5.8X200 |
5.8 | 200 | 4-50 | 28 |
| JH-5.8X250 | 5.8 | 250 | 4-65 | 28 |
| JH-5.8X300 | 5.8 | 300 | 4-80 | 28 |
| JH-5.8X350 | 5.8 | 350 | 4-90 | 28 |
| JH-5.8X400 | 5.8 | 400 | 4-105 | 28 |
| JH-5.8X450 | 5.8 | 450 | 4-120 | 28 |
|
JH-5.8X500 |
5.8 | 500 | 4-150 | 28 |
|
JH-7X200 |
7 | 200 | 4-50 | 38 |
| JH-7X250 | 7 | 250 | 4-65 | 38 |
|
JH-7X300 |
7 | 300 | 4-80 | 38 |
|
JH-7X350 |
7 | 350 | 4-90 | 38 |
|
JH-7X400 |
7 | 400 | 4-115 | 38 |
|
JH-7X450 |
7 | 450 | 4-120 | 38 |
| JH-7X500 | 7 | 500 | 4-150 | 38 |
