自锁式包塑不锈钢扎带

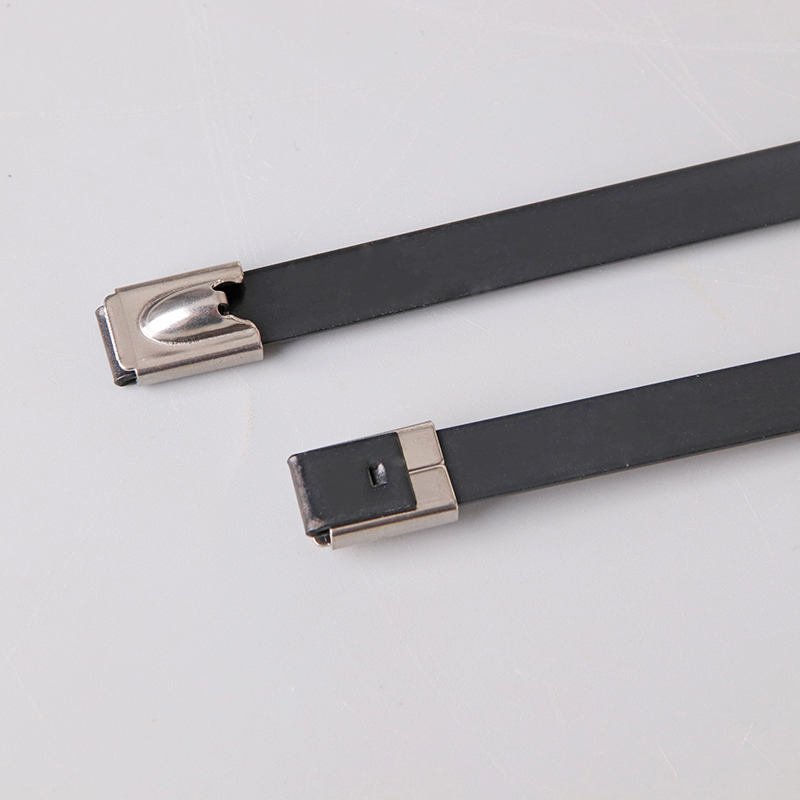

PVC Covered Stainless Steel Cable Tie-ball self-lock

产品特性 Product Features

材质：不锈钢304/316，外包PVC电缆塑料

特性：耐酸、耐腐蚀、不易燃烧，滚珠自锁是结构使其具有使用简单快捷，不可解开等优势。

工作范围：-40℃+100℃

Characteristic:They have an unique ball locking with PVC covering mechanism  that allow easily and quickly installed and notundone;

Working temperature:-40℃+100℃；

High resistance to acetic acid,alkali acid sulphuric acid,corrode...etc;High tensile strength:Non-flammability;

Material:Stainless Steel 304/316

产品参数如下表：

规格型号 Part number	宽度(mm) Width	长度(mm) Length	厚度(mm) Thickness	捆扎直径(mm) Max bundle dia	拉力(KGS) Min loop tensile
JHCC-5.6X150	5.6	150	1.0	37	35
JHCC-5.6X200	5.6	200	1.0	50	35
JHCC-5.6X250	5.6	250	1.0	63	35
JHCC-5.6X300	5.6	300	1.0	76	35
JHCC-5.6X350	5.6	350	1.0	89	35
JHCC-5.6X400	5.6	400	1.0	102	35
JHCC-5.6X450	5.6	450	1.0	115	35
JHCC-5.6X500	5.6	500	1.0	128	35
JHCC-5.6X600	5.6	600	1.0	154	35
JHCC-9X150	9	150	1.0	37	45
JHCC-9X200	9	200	1.0	50	45
JHCC-9X250	9	250	1.0	63	45
JHCC-9X300	9	300	1.0	76	45
JHCC-9X350	9	350	1.0	89	45
JHCC-9X400	9	400	1.0	102	45
JHCC-9X450	9	450	1.0	115	45
JHCC-9X500	9	500	1.0	128	45
JHCC-9X600	9	600	1.0	154	45
JHCC-9X800	9	800	1.0	225	45
任何长度均可定制，All lenght are available
